Pen Stealer

DEMO

COMPONENTS

• Trossen PincherX 100
• Intel RealSense Depth Camera D435i

VISION PIPELINE

• Process the RGB image to locate the pen in 2D space.
• Use trackbars to identify the Hue, Saturation, and Value (HSV) colorspace of the color purple.

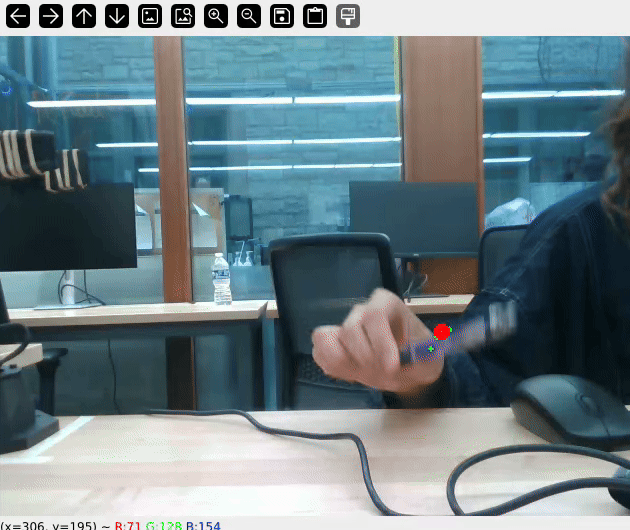

• Generate an HSV mask and use contour detection to isolate the pen in the image.
• If multiple contours are detected, select the one with the largest area to eliminate noise.
• Calculate the centroid of the selected contour as the 2D location of the pen in pixels.
• Use the camera’s intrinsic parameters to convert the 2D pixel coordinates into real-world coordinates (in meters) using the depth map.
• Output the pen’s location relative to the camera frame.

CALIBRATION

Calculating the pen’s position in the robot’s frame:

• Use the interbotix_xs_toolbox, a Python API that integrates with ROS2, to control the robot.
• Write different modes to control the robot’s actions:
  • Opening/closing the grippers
  • Moving forward/backward
  • Moving up/down
  • Rotating the arm about its base
• Use these modes to evaluate the robot’s workspace limitations (e.g., singularities, joint limits, torque limits).
• Find the transformation (translation and rotation) between the camera’s coordinate frame and the robot’s coordinate frame:
  • Collect data points where the end-effector is at known locations relative to both the robot base and the camera.
  • Use these data points in the camera frame and the robot frame to compute the transformation.
• Apply the computed transformation to the pen’s position (camera frame) to convert it into the robot frame for motion commands.

ROBOT CONTROL

• Set the robot to its ready position.
• Open the grippers.
• Detect the pen location using the vision pipeline.
• Rotate the robot’s waist until the end-effector is facing the pen.
• Move forward until the pen is within the grippers’ grasp.
• Close the grippers to grab the pen.
